Date: 10 May 2022
Worldwide, billions of birds are killed as they collide with glass windows and building facades — so much so that many cities and countries now require bird-friendly glazing in new buildings. In response to this global problem, Eastman, in partnership with SEEN AG, has introduced a new polyvinyl butyral (PVB) interlayer for laminated glass: Saflex FlySafe 3D, a highly effective solution to avoid bird collisions without compromising on the view or beauty of glass facades.

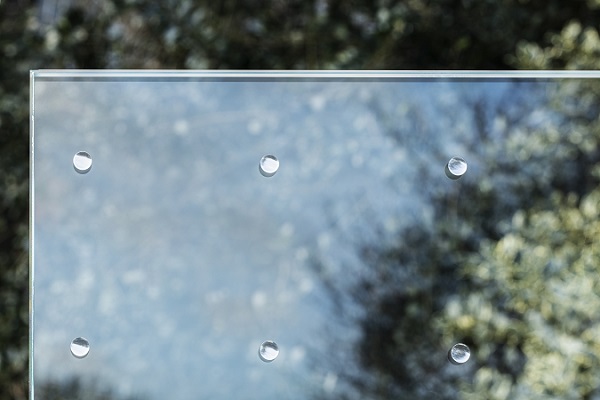

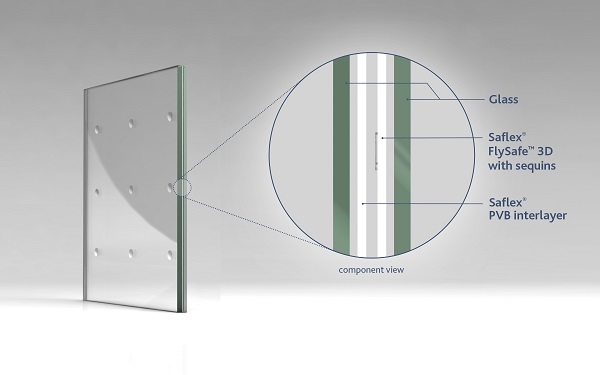

Unlike other bird-protection approaches that use decals, printing, or etching on the surface of the glass, Saflex FlySafe 3D features three-dimensional, reflective sequins between two layers of glass. The sequins catch the light at different angles, subtly twinkling to deter birds from the glass — something two-dimensional dots and stripes don’t do.
Due to the 3D nature of the sequins, less coverage is required; the discreet sequin pattern covers less than 1% of the glass area. Other solutions considered highly effective have at least five times the coverage and can be greater than 25%. And because the sequins are layered between glass, it is a long-lasting bird-protection solution.
“Given the prevalence of glass in modern architecture, bird collisions are a global problem,” said Heather Singler, commercial director of Eastman’s global architecture business. “Too often, birds fail to see glass, or misjudge reflections — all leading to avoidable collisions. And we can indeed avoid these collisions. Saflex FlySafe 3D has proven to be highly effective as a bird collision deterrent.”
Collision Laboratories in Hohenau-Ringelsdorf, Austria, have tested and rated the 3D-reflective technology used in Saflex FlySafe 3D. In both transmission and reflective testing, it is recognized in the industry and by ornithologists as one of the best — classified as highly effective, durable, and with better aesthetics. Additionally, Saflex FlySafe 3D helps builders and building owners meet emerging regulations and certifications for bird protection, including securing LEED SSpc55 pilot credits for bird collision deterrence thanks to a threat factor of less than 10 from the American Bird Conservancy.
The minimal coverage of the bird-deterring sequins makes Saflex FlySafe 3D interlayers ideal for a variety of applications, including atriums, balustrades, cladding, curtain walls, exterior doors, facades, link bridges, podium glass, skylights and windows.
In addition to bird collision avoidance, Saflex FlySafe 3D interlayers can be combined with selective coatings and other Saflex products to enhance glass further, giving it greater security, stability, acoustic control, solar control and protection from harmful UV rays.
“Even if your municipality doesn’t require bird-friendly buildings, it’s the right thing to do,” Singler said. “Our experts can help you spec the right type of interlayer — or combination of interlayers —to meet your safety, structural and aesthetic goals while protecting countless birds without trade-offs in efficiency and surface coverage.”
