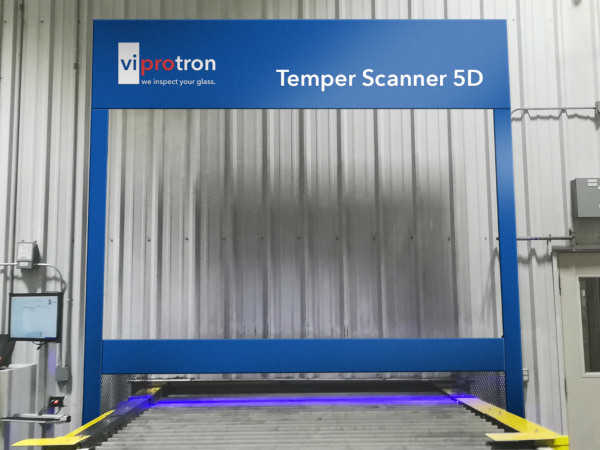

Viprotron’s 2022 Product Innovation: Temper Scanner 5D

Date: 20 October 2022
Source: Viprotron GmbH
Viprotron’s 2022 Product Innovation: Temper Scanner 5D
Photo source
Viprotron GmbH

Date: 20 October 2022

Complete metrology scanner after furnace exit: Rollerwave, Edge Kink, Anisotropy, White Haze, Scratches and Coating defects.

When Viprotron opened in 2004, the focus of our defect detection scanners was on the insulated glass market. While improving and refining our scanning technologies, our product range broadened to include cutting, fabrication, lamination, and tempering. In 2017 Viprotron launched the first ever Anisotropy and Haze Scanner in the market. In the USA, this breakthrough development was awarded as the most innovative equipment of the year.

Now we are proud to introduce our latest advancement in improving tempering quality. At glasstec 2022, Viprotron added a rollerwave and edge kink evaluation function to its lineup. All five functions will be available in one complete package – TEMPER SCANNER 5D – or as individual scanners: Rollerwave/Edge Kink, Anisotropy, White Haze and optical high contrasted defects as well as coating defects.

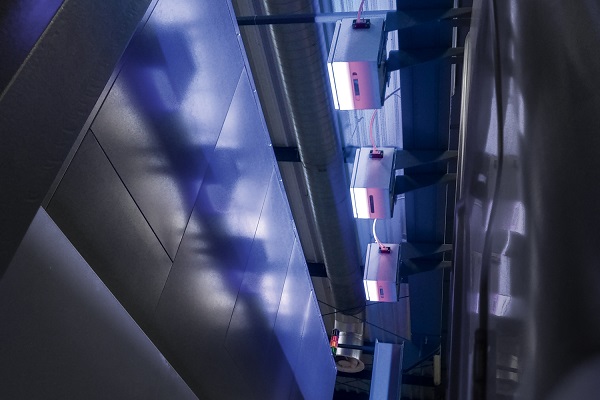

Multiple scanner heads capture the entire width of the line.
Multiple scanner heads capture the entire width of the line.

Although in the last years the furnace manufacturers have improved their processes, the Rollerwave and Edge Kink evaluation is still of great interest. The need to increase productivity often results in furnaces being utilized to the limits of production. That sometimes leads to minor product quality. In order to reliably operate the furnaces at the limit of their capacity, good measuring instruments are required. This is especially necessary for optical distortion, which does not only lead to a wavy appearance in the final product – but brings issues along when the sheets will be assembled to laminated or insulated glass.

In addition to the data that glass processors could already obtain from our haze or anisotropy control, the measurement of optical distortion now provides additional information. All these components can contribute to a significant improvement in furnace control and thus to better product quality at high productivity.

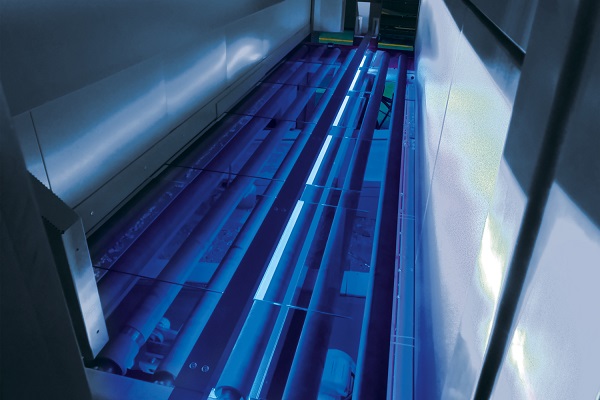

Regardless of the existing furnance exit rollers, the panes are reliably scanned.
Regardless of the existing furnance exit rollers, the panes are reliably scanned.

The special feature of Viprotron’s solution is that the quality of the furnace exit rollers will no longer play the decisive role. While solutions currently on the market still require the use of special rollers that ensure uniform glass transport and a certain light trap, Viprotron’s development focuses on a process that is as independent as possible from the physical appearance of the exit conveyors. An expensive retrofit of the outlet section would then be obsolete, and the tempered glass manufacturer can adapt his existing furnace outlet to the new function with only little effort.

The new scanner is therefore not only available for new furnaces, but also as a retrofit for older models.

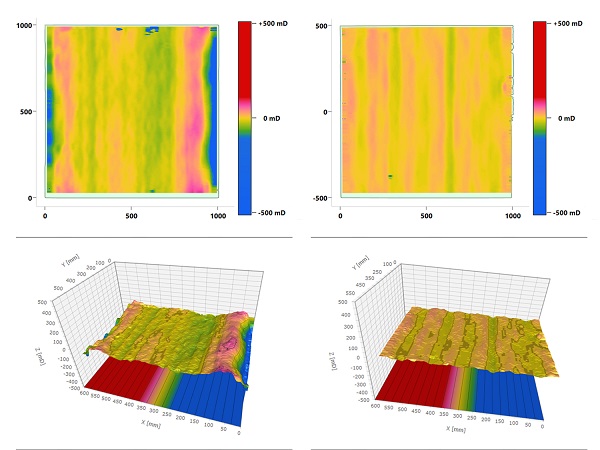

Measurement results of strong (left) and weak (right) optical distortion and edge kink.
Measurement results of strong (left) and weak (right) optical distortion and edge kink.

Take a closer look at all the features:

TEMPER SCANNER 5D
