Motivation

High-quality products require an appropriate level of inspection. Unfortunately, the human eye is limited in its repeatability and reliability over time, making an automated scanner system the primary choice for this application. Together with Viprotron, Glaszentrum Weber und Wagener / Germany has taken an important step towards improving quality assurance. For over 20 years, the company has focused on its core business of glass. The partnership between machine suppliers and staff results in products of the highest quality, which have been reliably inspected by our ECO Scanner since summer 2020.

Installation and commissioning of the scanner

The ECO Scanner can be implemented without complex modifications to the existing equipment. Due to a simplified integration, utilizing a reflective adhesive strip in combination with our camera system, installations can be carried out with limited interruptions in production.

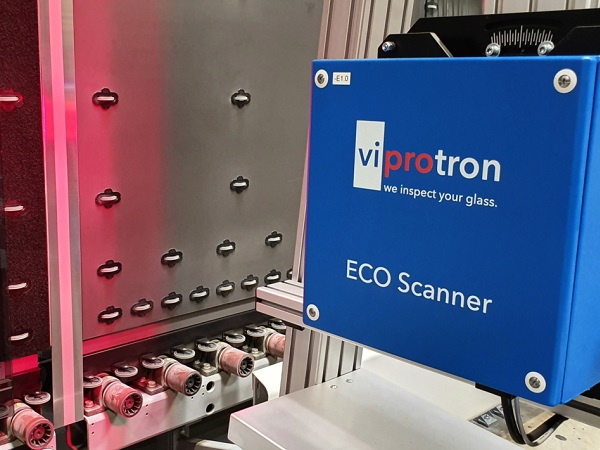

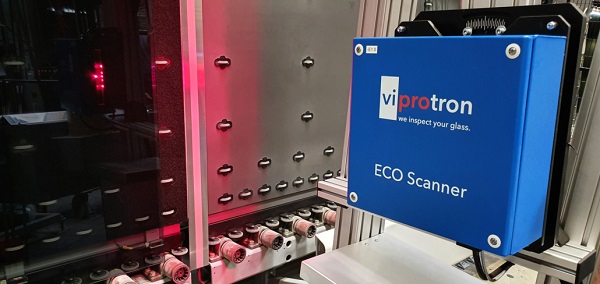

The narrow reflection band reflects the laser’s light beam back into the scanner housing to detect defects.
The narrow reflection band reflects the laser’s light beam back into the scanner housing to detect defects.

The scanner was commissioned by Viprotron and the Weber and Wagener personnel. Some of the necessary components such as monitor, keyboard, and mouse were provided by the customer and seamlessly integrated into the equipment supplied by Viprotron. After commissioning, the operators and quality team received specific training to their applicable demands. Due to the intuitive interface and simplified design, the team felt confidence in the use of the system in a very short period of time.

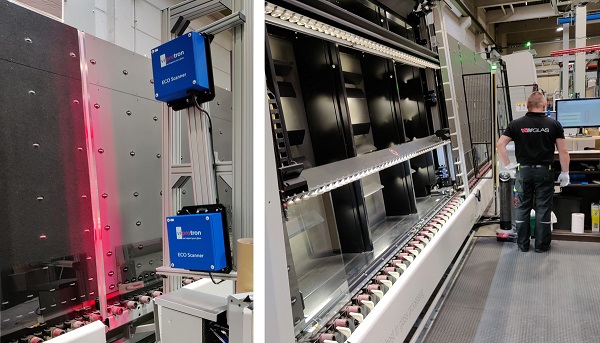

Two scanner heads check the glass panes before they enter the visiting station.
Two scanner heads check the glass panes before they enter the visiting station.

Software and display

The results of the inspected pane are displayed on the monitor at the inspection station. The display is highly intuitive and graphical: defect-free glass panes are shown with a green border, defective glass panes with a red one. The primary defects are also graphically represented utilizing colors: red stands for out-of-specification defects and blue stands for “allowed defects”.

The defect types are also shown graphically based on specific icons: Bubbles and inclusions with a dot, surface defects with a rectangle, and scratches with a line reflecting the location and direction of the scratch. By utilizing graphical representations relative to position, defects on the glass can be quickly identified and mitigated.

The underlying logic for the defect detection is based on a dynamic recipe that can be easily adapted according to the customer requirements relative to local standards (e.g. in Europe (EN 1279 I), USA (ASTM C1036) or Japan (JIS R3209)). By offering this flexibility to the quality managers or administrators, Viprotron provides the customer with a high degree of autonomy to manage their process.

The software accurately maps defects and their position on the monitor.
The software accurately maps defects and their position on the monitor.

Conclusion

After working with the ECO Scanner system from Viprotron, Weber and Wagener can confirm:

  • The system was simple to integrate, and no complex modifications were required prior to the system arriving
  • The user interface is extremely intuitive thanks to the graphical representation of the results
  • The ECO Scanner is very easy to use and maintain
  • The quality levels are both repeatable and reliable

Weber und Wagener Glas is currently considering another ECO Scanner for production.
