Structural Glazing Lends Design Flare To Cutting-Edge Bioscience Centre
Photo source
www.pilkington.com
The Charnock Bradley Building is the centrepiece of the University of Edinburgh’s expanding Easter Bush Campus eight miles south of the city.

The £32 million building is home to The Roslin Innovation Centre, the business location of choice for companies undertaking strategic, commercial and collaborative research in the Animal and Veterinary Sciences, Agri Tech and One Health industries.

The building serves as a hub for the campus, providing core facilities including a gym, and also houses the Easter Bush Science Outreach Centre for engaging the public with science.

The designers brief was to create a building that would reflect the cutting-edge work happening inside, as well as providing a bright and modern space to attract world-class academics, students and businesses to the institution.



Bridging two elements

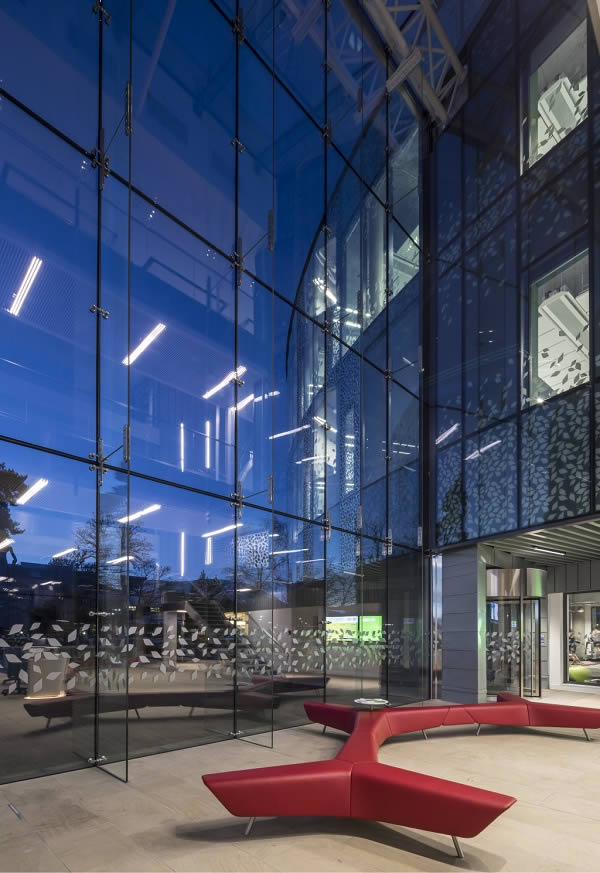

The heart of the centre is a dramatic full-height glazed atrium which incorporates a series of bridges at higher levels linking laboratory spaces in the building’s two distinct wings.

Atkins, the architects wanted to make the space as bright and open as possible, so specified a structurally glazed wall and a glass roof, to minimise framing and provide clear uninterrupted views in and out of the building.

To achieve this, Atkins worked closely with specialist façade contractor Charles Henshaw & Son and the Pilkington design team. This resulted in the highly engineered Pilkington Planar™ system being used innovatively creating a striking glass atrium.



High clarity and strength

Whilst glass is an extensively used and established construction material, it continues to evolve and develop in function and form. The ongoing technical development of glass, is one of the reasons that Pilkington Planar™had been specified by other leading-edge businesses and academic institutions, that wish to express themselves through their buildings.

The Pilkington Planar™ System installed in the atrium combined both strength and exceptional performance due to the selection of the products utilised in the system. The insulated glass units supplied on both the walls and roof contained Pilkington Suncool™ 66/33 OW on 12mm Pilkington Optiwhite™ a true low-iron substrate providing excellent thermal performance, aesthetics and views both into the building and out to the stunning landscape surrounding the building.

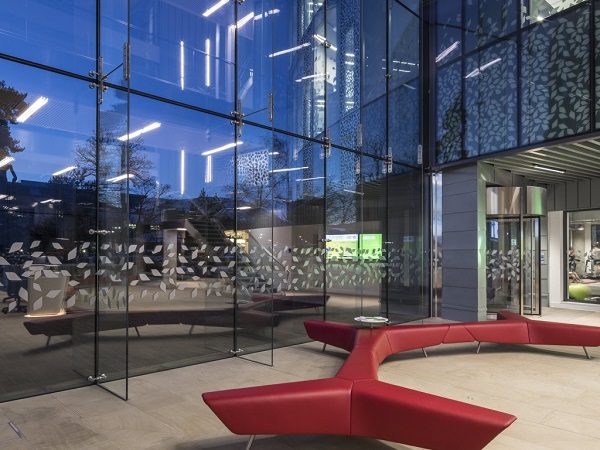

The transparency and aesthetics of the atrium were further enhanced by the use of 19mm Pilkington Optifloat™ Clear THS toughened and heat-soaked glass fins to support the vertical glazing and laminated glass beams. Whilst free from any framing the wall and roof glazing are exceptionally strong and able to withstand challenging design loads from high winds or snow fall on the roof.

Additional features used in the roof glazing is the incorporation of a toughened laminate inner pane enhancing the structural performance and safety of the glazing and the use of a screen print dot matrix pattern which improves environmental performance with limited impact on the quality of light entering the atrium.

Phil Savage, Head of Sales, UK Processing at Pilkington United Kingdom Limited said:

“This building is the focal point for the internationally renowned campus, which is set to continue to grow over the next 20 years. We’re proud that Pilkington Planar™ has been selected to play such a central role.

“The University of Edinburgh is the latest in a series of cutting-edge academic institutions that have chosen to glaze their buildings using Pilkington Planar™, which is testament to our commitment to offering the most technologically advanced system on the market.”
