Three questions for Holger Brechtelsbauer, Senior Product Manager for Vacuum Lifting Equipment at HEGLA

Holger Brechtelsbauer has been a product manager and consultant for vacuum lifting equipment for more than 15 years and recommends early and integrated process planning.
Photo source
Holger Brechtelsbauer has been a product manager and consultant for vacuum lifting equipment for more than 15 years and recommends early and integrated process planning | Photo: Hegla

Date: 9 May 2023

Senior Product Manager for Vacuum Lifting Equipment Holger Brechtelsbauer shares his know-how and answers three questions about handling systems.



Improved efficiency, more automation and user-friendly processes are perennial topics in the glass processing industry. What contribution can vacuum lifters make? What considerations do you recommend in advance?

With modern processing equipment, off-peak times are already optimised for maximum efficiency and cost-effectiveness. To ensure that the full potential of the systems can be exploited, when making an investment or reorganising it is valuable to take an early look at the overall processes and dependencies, including during handling. The approach is similar to those in other industries.Together with the customer, we start considering what a system can achieve under the best conditions. For handling, we then consider which pane formats need be processed and what the resulting weights are. Experience shows that some operating companies are reluctant to deviate from the maximum sizes and are inclined to cover the entire spectrum with large and therefore, oversized, vacuum lifting equipment. Evaluations indicate, however, that in everyday operations, small glass units generally dominate. The aim should thus be to rapidly move exactly this 85 to 90 per cent of panes onto the system or back onto the glass rack. Lifting devices can then be chosen to carefully match this requirement, ensuring they are ergonomically and optimally integrated for these tasks and are not oversized. Combined with a suitable lightweight craneway, for example, this lays the foundation for meeting the possible cycle times of systems. The remaining 5 to 10 per cent of large panes are not ignored in this design either. There is often an indoor crane which can be linked up with an additional lifting device for the heavier units. Alternatively, lightweight craneways can be designed with multiple crane bridges. In any event, it always pays to supplement a processing system with adapted vacuum lifting technology.

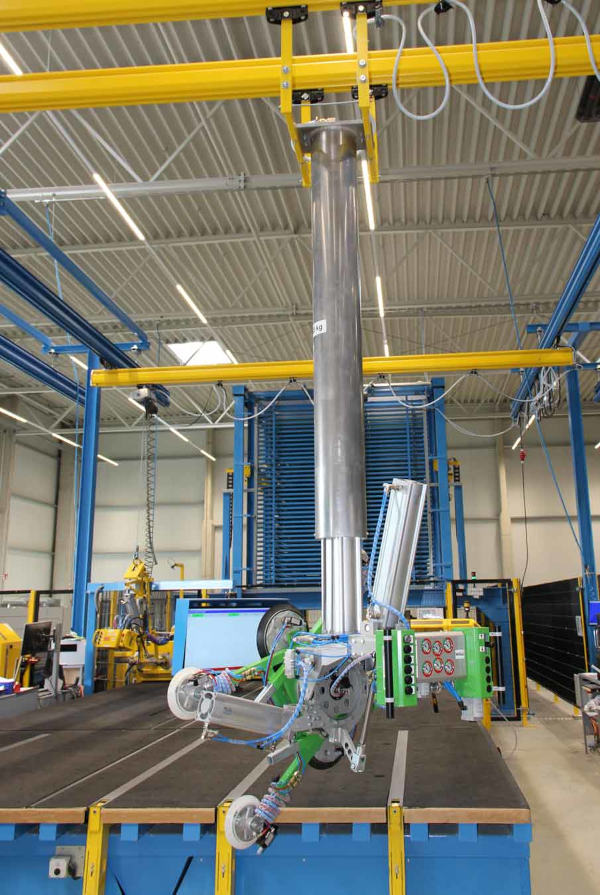

Pillar-guided lifting devices provide maximum stability of movement, safety and ergonomics thanks to user-friendly load control.
Pillar-guided lifting devices provide maximum stability of movement, safety and ergonomics thanks to user-friendly load control.

The glass processing industry has to handle increasingly heavy and large panes, which is often a challenge to machine operators. What needs to be considered when choosing a handling device when it comes to safety and user friendliness?

Operator safety is obviously the first thing you need to consider when choosing a vacuum lifter. It’s also non-negotiable. On top of that, ergonomic functionality should confirm at all times to employees that they are entirely safe and flexible when working with the handling device. The German load handling directive implementation law states that heavy panes start at a weight of 15 to 20 kg. The handling devices for these weights can usually be moved manually in a lightweight craneway and provide support. The load control of the suction device has a key influence on both ergonomics and operator convenience. The current trend is towards pillar-guided vacuum lifting equipment, where a torsion-resistant aluminium pillar ensures high motion stability, load control, positioning accuracy and maximum employee protection.

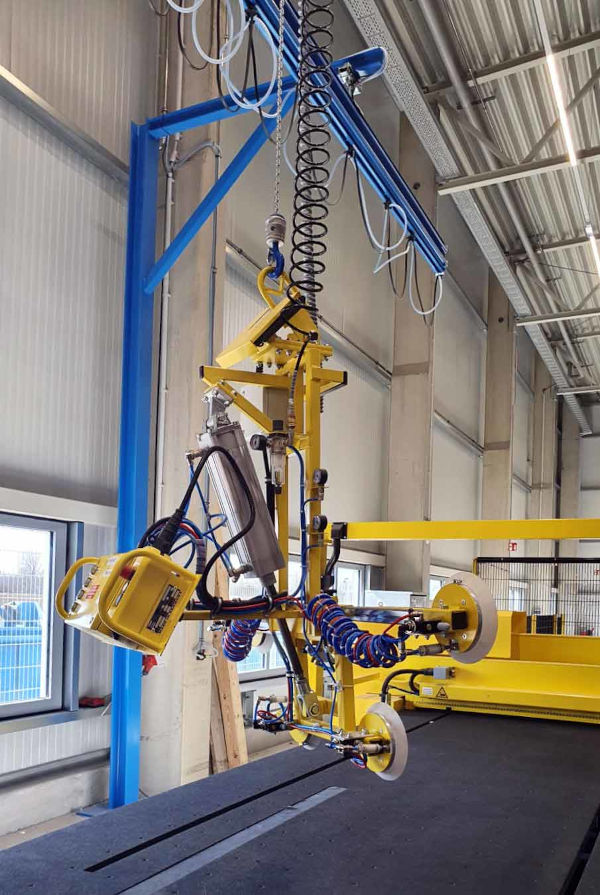

Chain-guided lifting devices, which may be mounted to a slewing crane or lightweight craneway to make them suitable for use in handling, offer additional flexibility.
Chain-guided lifting devices, which may be mounted to a slewing crane or lightweight craneway to make them suitable for use in handling, offer additional flexibility.

Where do you think the future demands on handling equipment with respect to increasingly digital automated production are heading?

First things first – traditional handling equipment and operators will continue to have their place in increasingly digital and automated production processes. There will certainly be an increasing number of applications in which robots could be used as an alternative in order to further boost automation. However, glass weights and formats are increasing and becoming more varied at the same time, so there are limits. We are also seeing more transfer stations with shuttles and self-driving systems between different processing stations. But in existing buildings, this is often unfeasible due to space limitations. With this in mind, I can foresee intermediate steps of digitalisation. By scanning laser markings or labels, the individual panes and racks can be registered. The handling device will then be integrated into the communication flow as a direct and decisive link, contributing to an integrated overview and dynamic, flexibly adaptable overall processes.
