Transparency at the highest level | sedak

Glass is architecture: the impressive glass façades with their gigantic panes supported by glass fins, some with heights of over 17 meters, are optimally suited to the immense size of the Lakhta Tower..
Photo source
Lakhta Center

Date: 30 January 2020

A total of 404 glass fins from sedak enable large-area glass façades in the new Lakhta quarter

Europe‘s tallest building dominates the north of St. Petersburg, directly on Neva Bay. Whilst from a distance the sheer size of the Lakhta Tower emanates the excellence of the building, directly at its foot two glass multifunctional buildings and a long, curving lobby bed the 462 meter tower into a harmonically undulating ensemble and give it an architectural basis.

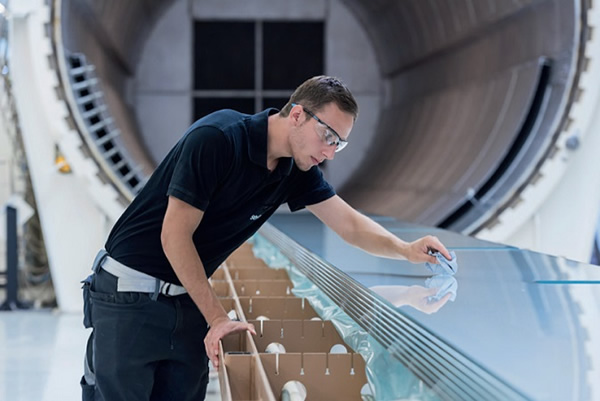

The glass fins were manufactured with high precision to enable the glass façades to be safely attached to them. Photo: Lakhta Center
The glass fins were manufactured with high precision to enable the glass façades to be safely attached to them.
Photo: Lakhta Center

The gigantic dimensions are reflected by the entrance areas of these multifunctional buildings. With a total of 326 glass fins in the north and south blocks as well as 78 glass fins in the entry archway, sedak (Gersthofen, Germany) provided the structural framework for the large-area glass façades. Among them were the longest laminates used in any current construction worldwide.

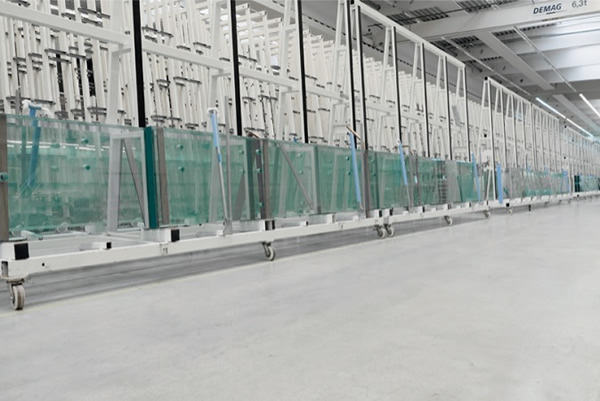

sedak produced tailor-made glass fins to meet the various requirements, including 14 seven-layer laminates. Photo: Lakhta Center
sedak produced tailor-made glass fins to meet the various requirements, including 14 seven-layer laminates.
Photo: Lakhta Center

Whereas the Lakhta Tower primarily contains office space and a panorama restaurant, the adjoining buildings extend the new quarter functionally. In the East the lengthy entrance lobby melds into the colossus. Here also, the architects‘ passion for glass is clearly visible. A large glass façade opens the new quarter towards the city.

The longest glass fins measure 17.2 meters and are thereby the longest laminates in use in any building worldwide. Photo: Lakhta Center
The longest glass fins measure 17.2 meters and are thereby the longest laminates in use in any building worldwide.
Photo: Lakhta Center

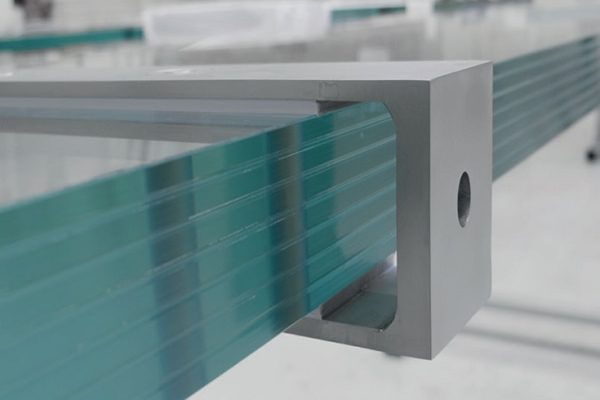

This was realized with 78 glass fins, raising the transparency to the highest level. The seven-layer laminates made from 12 mm thick sheets of glass were provided with high-grade steel shoes and equipped with steel elements by sedak during manufacture. A flush-fitting fixture was thus created that enables an unobtrusive and aesthetically attractive attachment of the façade panes. This perfect interaction underpins the architectural vision of using organic forms to connect the power of the water and the flow of the space with an openness and lightness.

sedak fitted some of the glass fins with attachment points made from high-grade steel. Photo: Lakhta Center
sedak fitted some of the glass fins with attachment points made from high-grade steel.
Photo: Lakhta Center



Record glass: 17.2 meters at the highest point

As the new home for diverse public facilities the planers created two extensive buildings to the west of St. Petersburg‘s new landmark. The buildings, wrapped completely in glass, swing away from the tower in a series of waves, rising steeply in the direction of the water. In addition to a cinema, planetarium and science centre, they house cafés, shops and a spa.

Glass is architecture: the impressive glass façades with their gigantic panes supported by glass fins, some with heights of over 17 meters, are optimally suited to the immense size of the Lakhta Tower.. Photo: Lakhta Center
Glass is architecture: the impressive glass façades with their gigantic panes supported by glass fins, some with heights of over 17 meters, are optimally suited to the immense size of the Lakhta Tower...
Photo: Lakhta Center

In order to outwardly emphasize this openness for everyone, the recessed corners in the northern and southwestern wings rise significantly and invitingly above the rest of the building. A total of 326 glass fins carry the façade, narrowing towards the top, where they follow the external profile of the buildings. Here, the 17.2 meter long fins that support the façade at the highest points stand out. They are the longest glass fins currently in use in any building. „This is a milestone that we are very proud of, but the limits have not yet been reached“, said sedak Manager Ulrich Theisen looking back at the project, which was worked on for over a year.

In the huge complex the lobby area on the corner almost seems small. In reality, this part of the building alone almost qualifies as a skyscraper. Photo: Lakhta Center
In the huge complex the lobby area on the corner almost seems small. In reality, this part of the building alone almost qualifies as a skyscraper.
Photo: Lakhta Center

In order to support the glass areas of the façade resulting from the geometry, with their various loads, sedak manufactured the glass fins in multiple designs. The main load is carried by the numerous triple layer laminates – in three different widths, 237 glass fins were used in the construction of the two auxiliary buildings.

The vision: making use of organic forms to connect the power of the water and the flow of the space with an openness and lightness. Photo: Lakhta Center
The vision: making use of organic forms to connect the power of the water and the flow of the space with an openness and lightness.
Photo: Lakhta Center

These are complemented by 58 eight-layer laminates (8 x 12 mm) equipped with high-grade steel bases, 14 seven-layer (5 x 12 mm and 2 x 15 mm) as well as 17 six-layer laminates (6 x 12 mm). Glass brackets were laminated onto the latter to attach the steel elements, achieving an optically seamless transition to the façade components.

The glass-wrapped buildings swing away from the tower in a series of waves – a harmonious ensemble. Photo: Lakhta Center
The glass-wrapped buildings swing away from the tower in a series of waves – a harmonious ensemble.
Photo: Lakhta Center

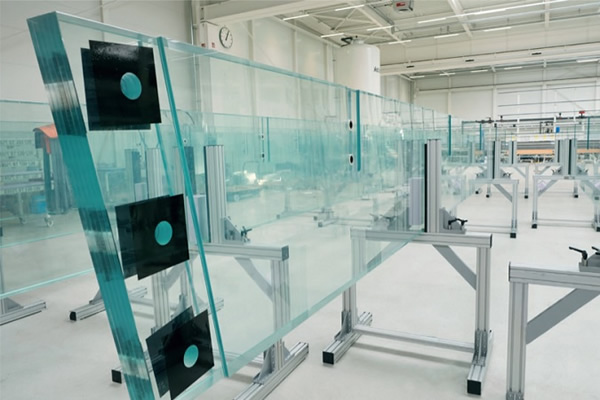

Over the complete height of the various fins sedak accurately drilled the attachment points for te façade glazing: a total of 3316 holes with diameters of between 32 and 60 mm - and that with a high degree of precision. In the subsequent lamination everything had to function perfectly. „That was a great challenge because absolutely no tolerances were possible“, explained Theisen.
