To provide you with some guidance in the search for the right facade access solution, we will briefly explain and compare some available options in facade access solutions.

With the number of high-rise buildings increasing, the demand for safe facade access is at an all-time high. But, what are the options? And which one do you choose for your specific building?

To provide you with some guidance in the search for the right facade access solution, we will briefly explain and compare some available options in facade access solutions. Each with its own characteristics.



Bosun’s chair

Bosun’s chairA Bosun’s chair (or boatswain’s chair) is a short plank that is used to suspend a single person from the roof or another higher level, and abseil alongside the facade using a rope. They are a relatively quick way to gain access to a facade and require little investment.

However, Bosun’s chair users need to be well-trained to operate the facade access solution. Due to the manual proceedings needed to operate the system, the risks are high. This is why workers qualified to use Bosun’s chairs are relatively more expensive than workers using a suspended platform system or BMU.

Because a Bosun’s chair is used by a single person, the work area is no bigger than the user’s reach. This is fine when a facade is narrow and the maintenance interval is low, but when a facade is wide and requires maintenance regularly, multiple workers need to be hired. Because hiring qualified Bosun’s chair users is relatively more expensive, this can become a costly operation.

Another challenge can be found in the complex shapes facades come in. A Bosun’s chair is most suitable for straight facades. A worker can move up and down the facade, but horizontal travel during a descent is next to impossible. Unless the chair is disconnected and the anchor point is moved along the roof edge.

Due to the introduction of new standards for the general industry by OSHA this year, there is also a height restriction, limiting its use to 300 feet. Furthermore, restraint of the system is required when vertical travel exceeds 130 feet.



Suspended platform systems

Suspended platform systemsA system where a suspended platform (also known as swing stage or suspended scaffold) hangs alongside the facade of a building.

It hangs suspended on Davit arms, outrigger beams, parapet clamps or another form of anchorage.

Two hoists installed on the platform can be operated by the user in order to travel vertically alongside the facade.

Suspended platform systems may only be operated by qualified persons. Using the system is relatively easier than the above mentioned solution and therefore brings less risks.

These suspended scaffolds can be used for low-, mid- and high-rise buildings. However, the hoists need to be on roof level when vertical travel exceeds 490 feet. In practice, one would choose a Building Maintenance Unit once vertical travel exceeds 300 feet, but we will cover that later on.

Platforms can vary from 3 to 52 feet long and two persons can perform work simultaneously. This means a large area can be covered in one vertical travel and work can get done relatively fast. However, to move the system horizontally, the platform has to be detached from the anchor.

After both components have been repositioned, the system needs to be certified by a competent person again. Completely accessing a large facade can be become a time consuming process this way. Also, this facade access solution is not very suitable for inward or outward sloping facades.



Building Maintenance Unit (BMU)

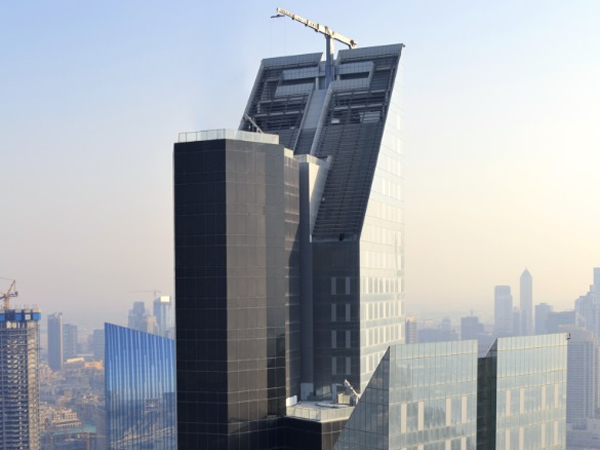

Building Maintenance Unit (BMU)A Building Maintenance Unit is a permanent system that comes in various forms and applications. Common solutions in this category are overhead trollies (monorails), traversing roof cars, telescopic booms or a combination of the latter two.

Suspended from the aforementioned, is a gondola which is fitted with a control box to operate the system. A BMU is an ideal solution to maintain tall and wide facades, because the gondola can move vertically as well as horizontally while hanging suspended.

Because it’s a permanent solution, the system only needs to be serviced and certified once a year. Although users still need to be trained properly, there is no installation knowledge required which lowers the risk of incidents happening.

This facade access system can be customized to meet specific demands of more complex buildings that have inward or outward sloping facades, twisting facades or facades with protruding elements for example.

These customizations can include rotating booms, extending gondolas and the use of soft rope systems, among other things.

Besides that, the machine can be made to blend into the design of the structure by hiding it from sight when in parked position. This way, the aesthetical value of the building is not affected.

Placing a BMU on an existing building is a big investment. But costs for workers are lower, so on the long run savings will be made maintaining a large facade area in comparison with using (multiple) Bosun’s chairs or suspended platform systems.
