New GlassFit CC-775 System | Comenza

New GlassFit CC-775 System | Comenza
Photo source
www.comenza.com

Date: 3 September 2019

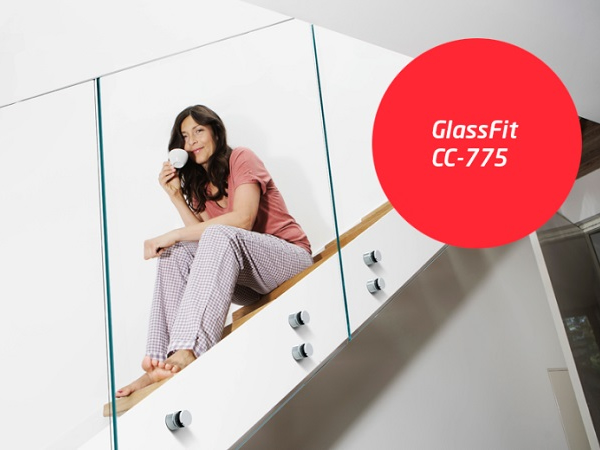

Optimises installation times with an exclusive design and maximum safety.

The new button system for glass railings with side adapter in stainless steel AISI-316 incorporates the new Level 2D device that allows you to level glass panels quickly and easily, even with the glass already installed.

Designed according CTE (Technical Building Code) regulation for use in private spaces (0.8 kN /m) such as single-family homes, hotel balconies, residential building balconies, stairways, etc.

This system brings together the differential values of the Comenza brand:

    • Design: The design of the CC-775 system is characterised by being innovative, minimalist and elegant, in line with current architecture.
    • Safety: Our goal is to guarantee the safety of the end user, complying with all legal and regulatory technical requirements. We test our systems in our laboratory in accordance with international regulations and accredited certifiers.
    • Ease of installation: In accordance with our commitment to guarantee simple, fast and economical assemblies, the new GlassFit CC-775 system incorporates Slot 360 and Level 2D levelling devices that enable the installed glass to be perfectly levelled.

      As a result of feedback from our customers and the continuous work of our R&D&I department, we present the new CC-775 system that eliminates the great inconvenience of traditional devices, enables levelling once the glass has been installed.

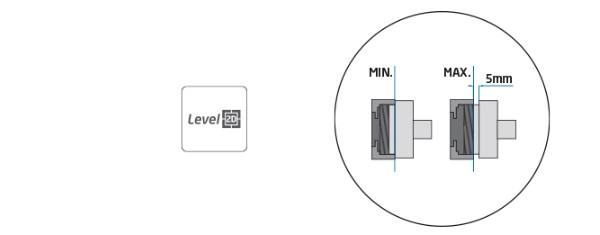

      LEVEL 2D regulation system

      LEVEL 2D regulation system: Enables installation on floors with unevenness of up to 5mm with the glass installed.

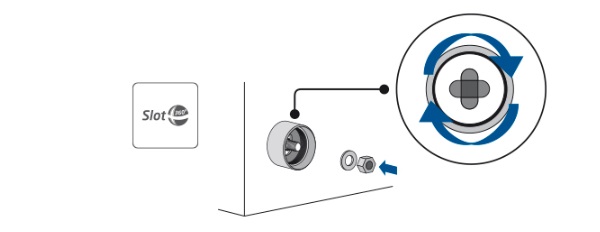

      Slot 360º

      Slot 360º: Internal device that allows a 360º adjustment in the placement of the base of the piece. It is possible to carry out the installation, even when the centre of the hole of each of the anchors has deviated from its mounting position up to a maximum of ± 8 mm in any direction.

      Slot 360º
