Extended range of applications for “Roto AL 300”

Roto AL 300
Photo source
ftt.roto-frank.com
New hinge side for aluminium windows that are flush with the surface up to 80 kg.

In Southern Europe and South America in particular, manufacturers of aluminium profiles are reporting the return of window designs where the sash is resting on a frame with integrated offset edge. Roto has prepared itself for this design trend, explains Matthias Nagat, Head of Roto Aluvision Range Marketing and Product Adaptation.

When the window sash is closed, these window designs stand out because the sash looks like it is resting flush on the surface of the frame. The challenge for the hardware manufacturer is that the profile design calls for a special hinge geometry so that the sash can overcome the offset edge in the frame.

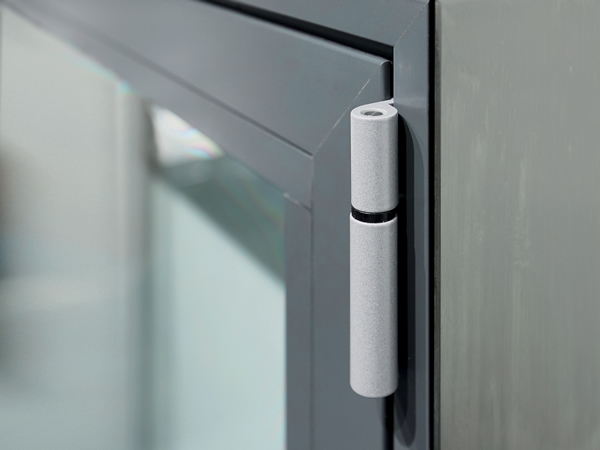

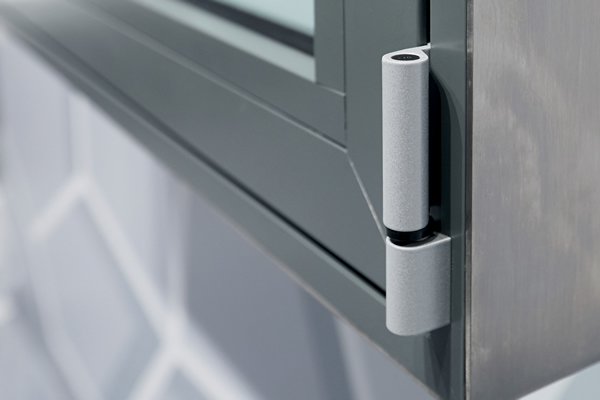

Special hinge geometry

Roto Aluvision developed a solution with the required geometry based on the proven “Roto AL 300” surface-mounted hinge side. The new hinge side created in this way can be installed on the left- and right-hand side and once again drastically expands the application range of the “Roto AL 300” modular hardware system. Roto Aluvision specialists provide prospective customers with advice relating to both the design and the product.

Overall view of a window design with “Roto AL 300” for profile systems with integrated offset Edge
Overall view of a window design with “Roto AL 300” for profile systems with integrated offset Edge



Demand is growing

“In Argentina, it has already reached the stage where interest in the Tilt&Turn opening type has measurably grown since Roto started offering an impressive hinge side for profile systems with integrated offset edge,” reports Nagat.

Roto expects the profile design with the view that is flush with the surface to soon become more established in other markets, too. Establishing a link with “Roto AL 300” at an early stage through the new hinge side was therefore a crucial step so that users of a profile view that is flush with the surface could also have access to this particularly economical hardware.

Roto AL 300

“What this hardware represents is Roto quality for affordable aluminium windows with a good design,” explains Nagat. “This is because, thanks to preassembled, clampable components, ‘Roto AL 300’ reduces the installation effort and installation time, regardless of which hinge side and which profile system the manufacturer uses.” It is used up to a sash weight of 80 kg in Tilt&Turn and Turn-Only windows, with the latter requiring the use of an adjustable rebate sash stay.

Roto AL 300
