Date: 14 October 2019

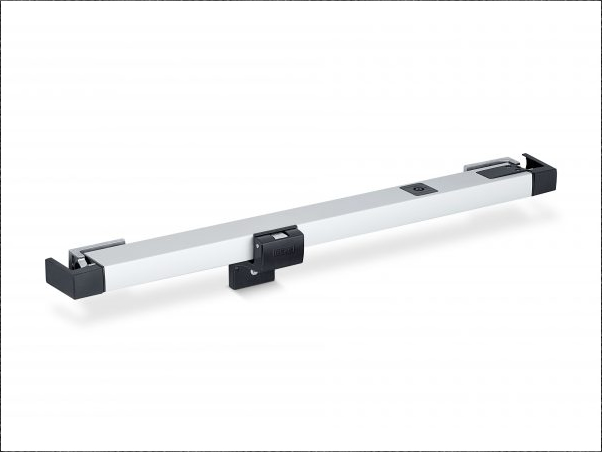

The Slimchain 230 V is the newest addition to GEZE’s Slimchain family of window opening drives that are cost-effective and easy to install.
Its slim and discreet look – just 25mm in height and 44mm depth - means that it can be integrated perfectly into a façade design and installed on a window leaf or frame.
The Slimchain 230 V is extremely adaptable. It can be fitted to wooden, plastic or metal windows and is suitable for inward and outward opening, bottom, top and side-hung windows. The Slimchain 230 V can also be used in a building management system with the appropiate connections.
Its slender proportions belie its strength, with a holding force of 2000 N, it can open windows with a leaf weight of up to 200 kg. The Slimchain 230 V also offers drive stroke with variable adjustment and can be configured in a left/right variant.
Its GEZE Smart fix installation system ensures a fast and easy installation with direct 230 V connection via a connection terminal and connector plug.
The Slimchain 230 V is available in anodised aluminium (EV1) or white (RAL 9016).
