VetroStax Frameless Stacking Doors System
Photo source
coolingbros.com.au

Date: 15 September 2017

Bring stunning views in while leaving the elements out with Cooling Brothers Vetro Stax Frameless Stacking Door System.

Vetro Stax Frameless Stacking Doors is an elegant glass wall solution suited to both commercial and residential applications, perfect for creating seamless views and flow from internal to external spaces.

A feeling of openness can be easily achieved with this sophisticated water resistant system whilst providing the option to effortlessly partition an area when required.

Cooling Brothers is proudly the only supplier of this high quality frameless system in Australia, its elegant simplicity and ease of use is an appealing feature for the home, shop front, office or retail space.

Engineered as a top hung design with structural headwork for additional strength, Vetro Stax is available in a range of versatile configurations allowing maximisation of space with minimal footprint.

Vetro Stax can also be supplied in a range of high performance Low-E glass types and custom makeups to enhance building envelope performance and assist to save energy.

Cooling Brothers can supply and install Vetro Stax in the Perth metropolitan area or alternatively, the entire kit is available with all hardware supplied to your preferred installer interstate.

Product features include:

  • No floor channel required
  • Aluminium top rack
  • Tough proven hardware
  • Flexible layout designs

Information for specifying:

  • Maximum leaf mass : 150kg
  • Glass : Toughened 10mm to 19mm
  • Maximum size: Depends upon application

VetroStax Frameless Stacking Doors System

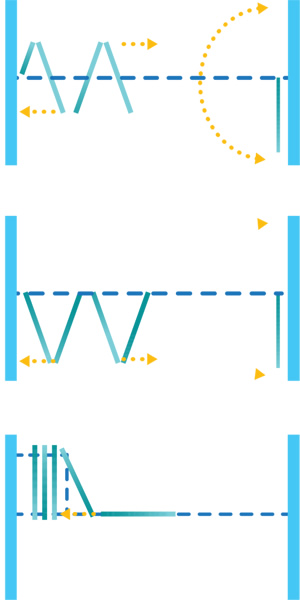

STACKING CONFIGURATIONS

VetroStax Frameless Stacking Doors SystemCENTRE STACK

  • Single trolley suspension folding panels hinged in ‘floating pairs’
  • Single track keeps overhead support simple
  • Panels stack 50% inside and 50% outside
  • Floor guide recommended
  • Stack internally or externally
  • Maximum 6 leaf hinged together and to pivot

END FOLD

  • Single trolley suspension with hinged folding panels
  • Single track keeps overhead support simple
  • Panels stack perpendicular to the main track
  • Floor guide is required
  • Stack internally or externally
  • Maximum 6 leaf hinged together and to pivot

SIDE STACK

  • Dual trolley suspension with individual sliding panels
  • High weight capability
  • Stack internally or externally
  • Panels stack perpendicular to the main track
  • No floor guide is required

VetroStax Frameless Stacking Doors System

See VetroStax on display at the HomeBase Showroom in Subiaco.
