PremiPlan Plus - residential door connection with KÖMMERLING 88 centre seal

PremiPlan Plus - residential door connection with KÖMMERLING 88 centre seal
Photo source
www.koemmerling.com

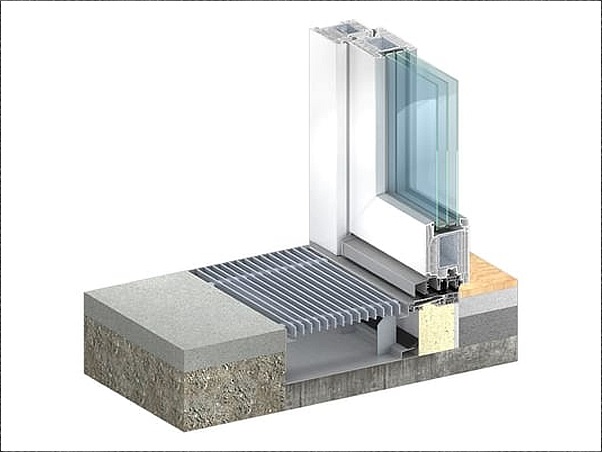

The premium threshold system for maximum barrier freedom with a high degree of accessibility, for ground level installation at zero millimetres.

This threshold system also builds on the standard threshold. By using special additional parts and a bed profile of structural material, the threshold is installed at ground level of zero millimetres on the inside and outside. The EVALON-coated connection angles and stainless steel connection plates, specially designed for the system, allow professional connection of the flexible waterproofing sheets and installation of the water channels.

A parallel retractable floor seal is the main component of the multistage and continuous sealing concept which achieves maximum results by means of specially developed structured parts. The modular design of the system allows efficient manufacturing and installation.

PremiPlan Plus can be used with the KÖMMERLING 76 double and centre seal as well as KÖMMERLING 88 centre seal residential and terrace door systems.

Highlights

Brochures

  • PremiPlan Plus is a threshold system for maximum barrier freedom for ground level installation at zero millimetres.
  • The parallel, retractable floor seal is the main component of the multistage and continuous sealing concept.
  • No sliding seal on the threshold.
  • Suitable for KÖMMERLING 76 double and centre seal as well as KÖMMERLING 88 centre seal window and residential door systems.
  • For tilt / turn glazed doors, side entrance doors and residential doors.
  • Protection against driving rain, class 9A.
  • Secure building connection through stainless steel connection angles and plates.
