Sun shading come wind, rain or shine | Schüco

The Schüco CSB sun shading on rollers can withstand wind speeds of up to 25 m/s (force 9-10 on the Beaufort scale).
Photo source
The Schüco CSB sun shading on rollers can withstand wind speeds of up to 25 m/s (force 9-10 on the Beaufort scale). | Picture credits: Schüco International KG

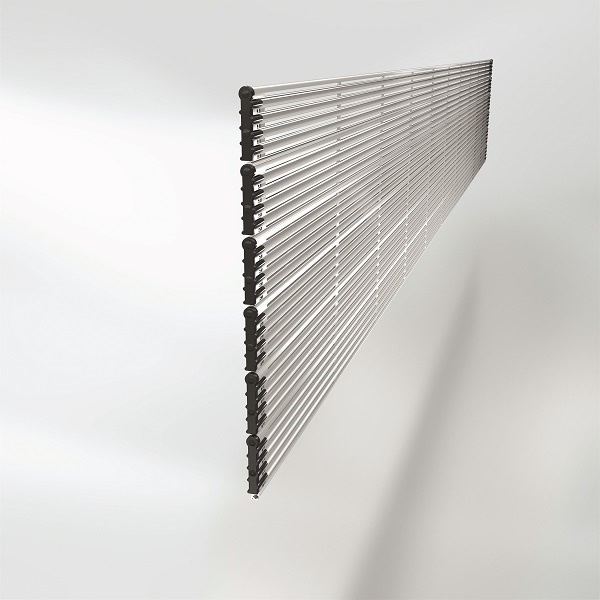

Schüco CSB sun shading louvre blade system on rollers.

The new Schüco CSB (Concealed Shaped Blind) sun shading made from aluminium louvre blades on rollers functions reliably even at wind force 9-10. With a level of transparency of over 23%, the user retains the link to the outside world even when the blind is completely closed.

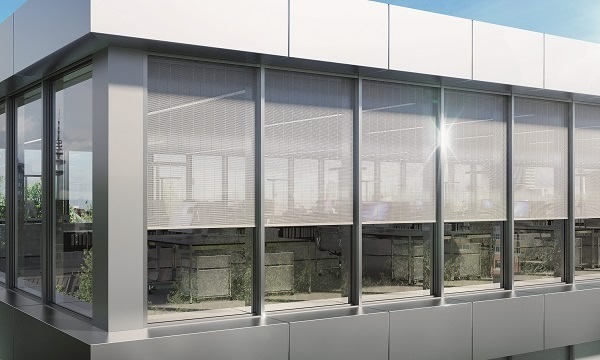

Picture credits: Schüco International KG Schüco CSB sun shading blends seamlessly into the exterior design of the building.
Picture credits: Schüco International KG
Schüco CSB sun shading blends seamlessly into the exterior design of the building.

As external sun shading that is fully integrated in the Schüco FWS 50/60 façade system, Schüco CSB offers a shading solution that heavily reduces solar heat gain in buildings on sunny days. This is also the case on days with strong winds, as the sun shading on rollers can withstand wind speeds of up to 25 m/s (force 9-10 on the Beaufort scale).

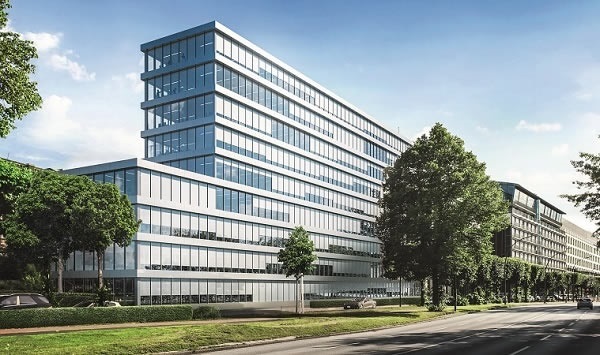

Picture credits: Schüco International KG CSB sun shading is perfectly integrated into the Schüco FWS 50/60 façade.
Picture credits: Schüco International KG
CSB sun shading is perfectly integrated into the Schüco FWS 50/60 façade.

This is all thanks to the extruded aluminium louvre blades, which remain stable in the guide tracks integrated in the cover caps. The high level of transparency of 23% is achieved through the combination of the louvre blade shape and louvre blade punched holes.

Complete shading of direct solar radiation is provided when the angle of the sun is greater than 21°. The blind is available in anodised colours C0 and C31 to C35; it can therefore fit in perfectly with the external design of the building or add colourful touches.

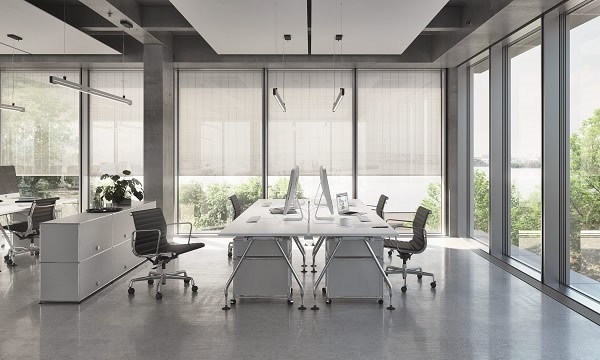

Picture credits: Schüco International KG With Schüco CSB sun shading, the user retains the link to the outside world.
Picture credits: Schüco International KG
With Schüco CSB sun shading, the user retains the link to the outside world.



Fabrication and installation benefits

Schüco CSB sun shading is integrated into SchüCal software, making it easy to configure versatile units. At 4.6 kg/m2, the blind is a sun shading lightweight. It is supplied rolled up on the drive shaft and therefore ready for installation.

All that is left for the fabricator to do is cut the side guide tracks. As the slide-in guide is integrated in the blind covers at the side, the fabricator is saved the time-consuming step of inserting the side rubbing strips into the guide tracks.

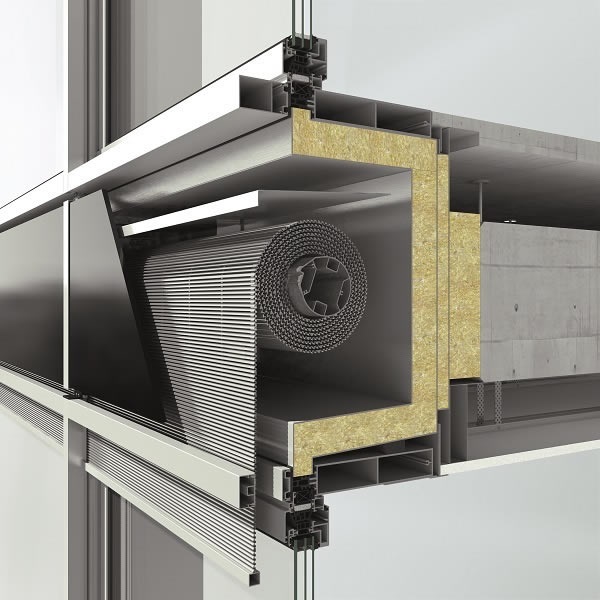

Picture credits: Schüco International KG Integration of CSB sun shading in the Schüco FWS 50 façade system.
Picture credits: Schüco International KG
Integration of CSB sun shading in the Schüco FWS 50 façade system.

Fabricators can also save themselves the lengthy manual process of setting the end stop: the top and bottom end position of the blind are set by the user when using it for the first time by means of an installed load cut-off in the motor.

Furthermore, the automatic end stop setting including obstacle detection prevents damage to the CSB sun shading caused by incorrect handling.

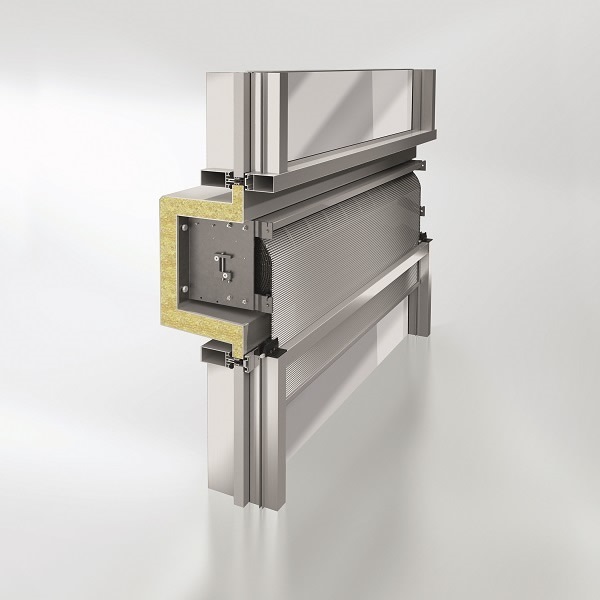

Picture credits: Schüco International KG Integration of CSB sun shading in the Schüco FWS 50 façade system.
Picture credits: Schüco International KG
Integration of CSB sun shading in the Schüco FWS 50 façade system.
Picture credits: Schüco International KG Schüco CSB sun shading completely conceals the slide-in guide via blind covers at the side, with no additional rubbing strips in the guide tracks.
Picture credits: Schüco International KG
Schüco CSB sun shading completely conceals the slide-in guide via blind covers at the side, with no additional rubbing strips in the guide tracks.

For more information, visit www.schueco.de/sonnenschutz
