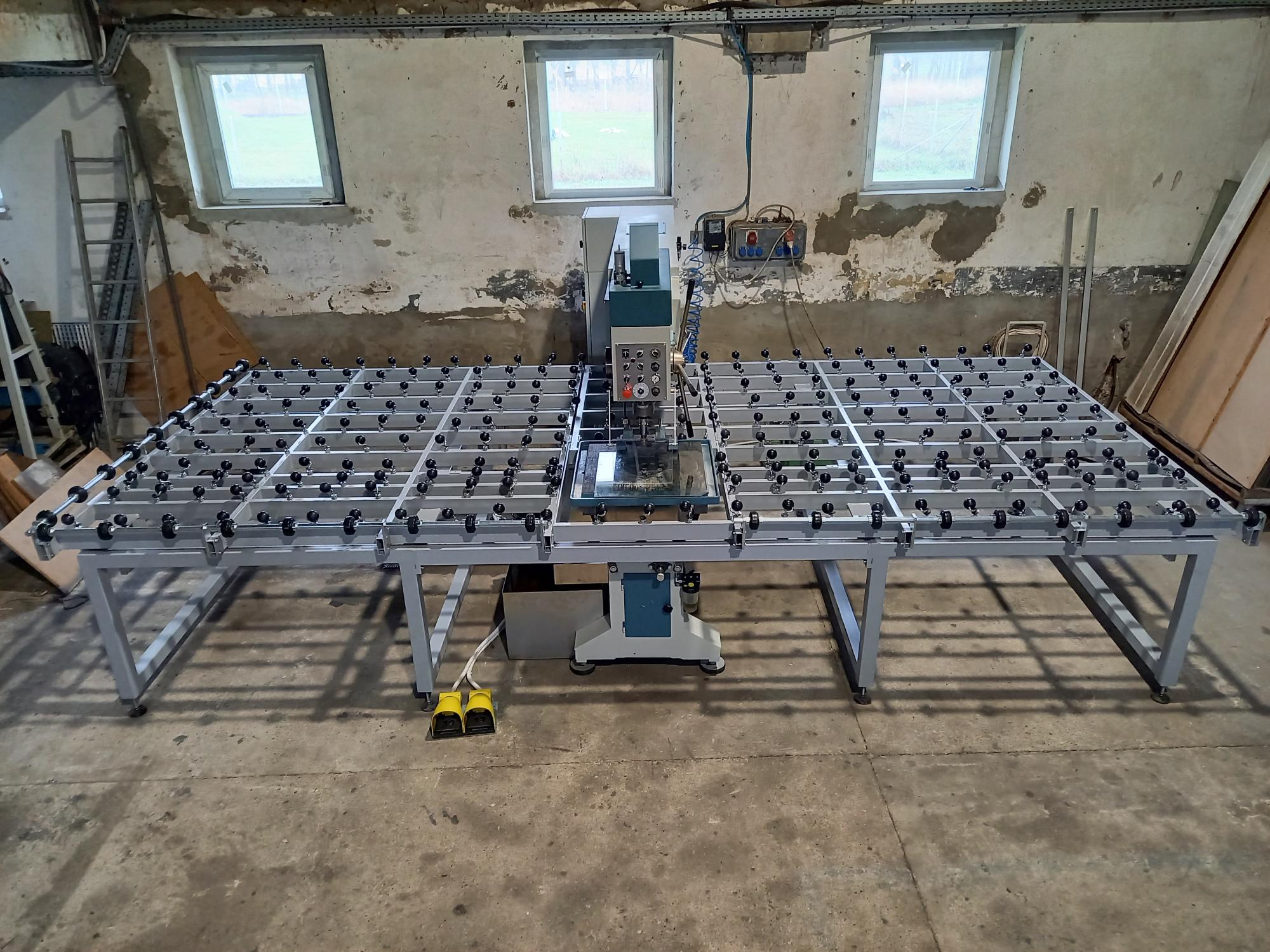

METRAL double head drilling machine TD3, completely overhauled 2023

METRAL double head drilling machine TD3-2000, year 2003, complete overhauled 2023

Technical data:
glass thickness 2-50 mm
bore diameter 3-180 mm
weight without roller table: 775 kg
power supply: 2,5 kW
measurements without roller table: 1,3 x 1,7 x 1,2 m

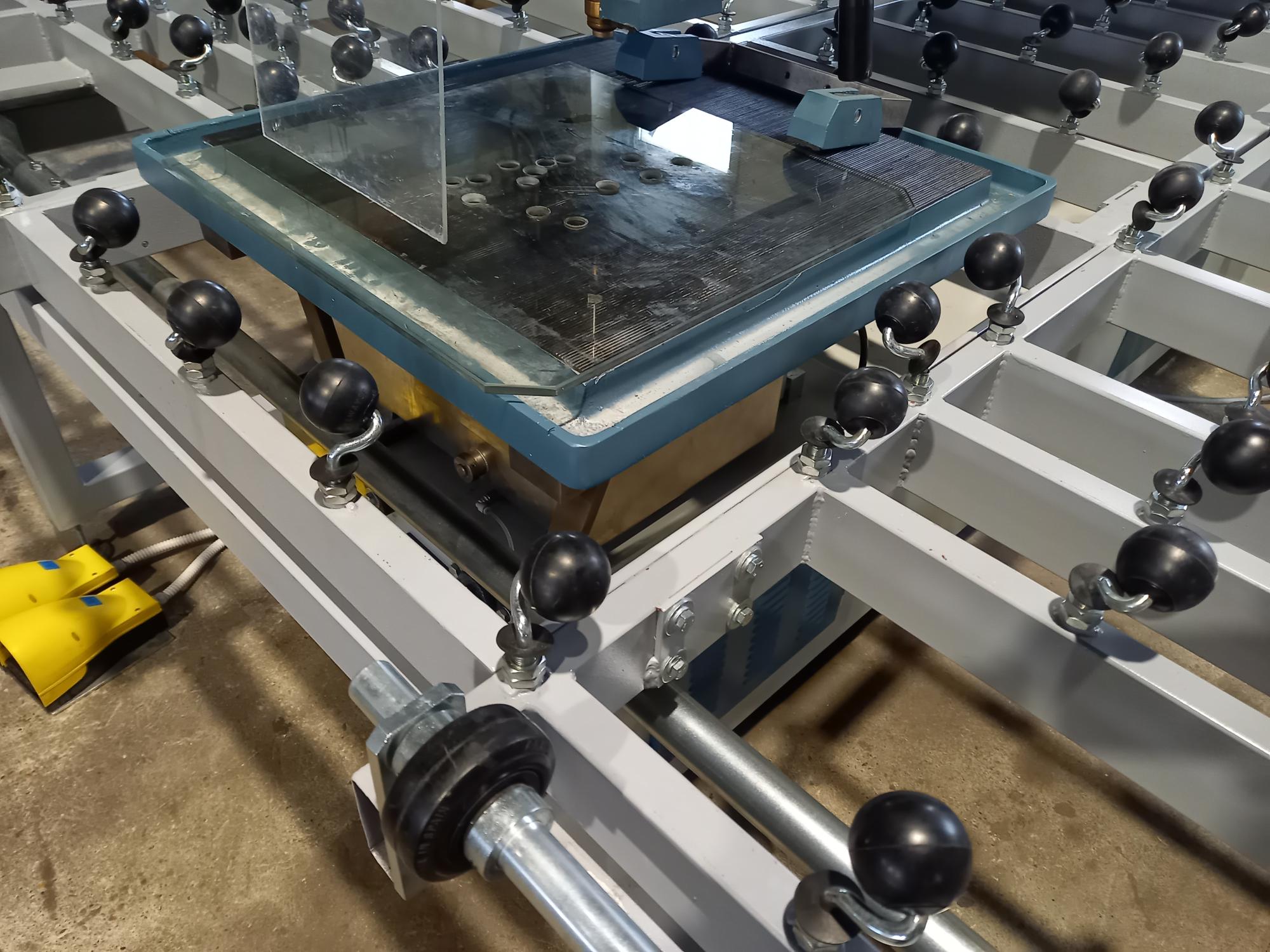

measurement roller table: 5,2 x 2,4 m/ height 1050 mm/+-25 mm
maximum measurement machine frame to drilling center: <2000 mm

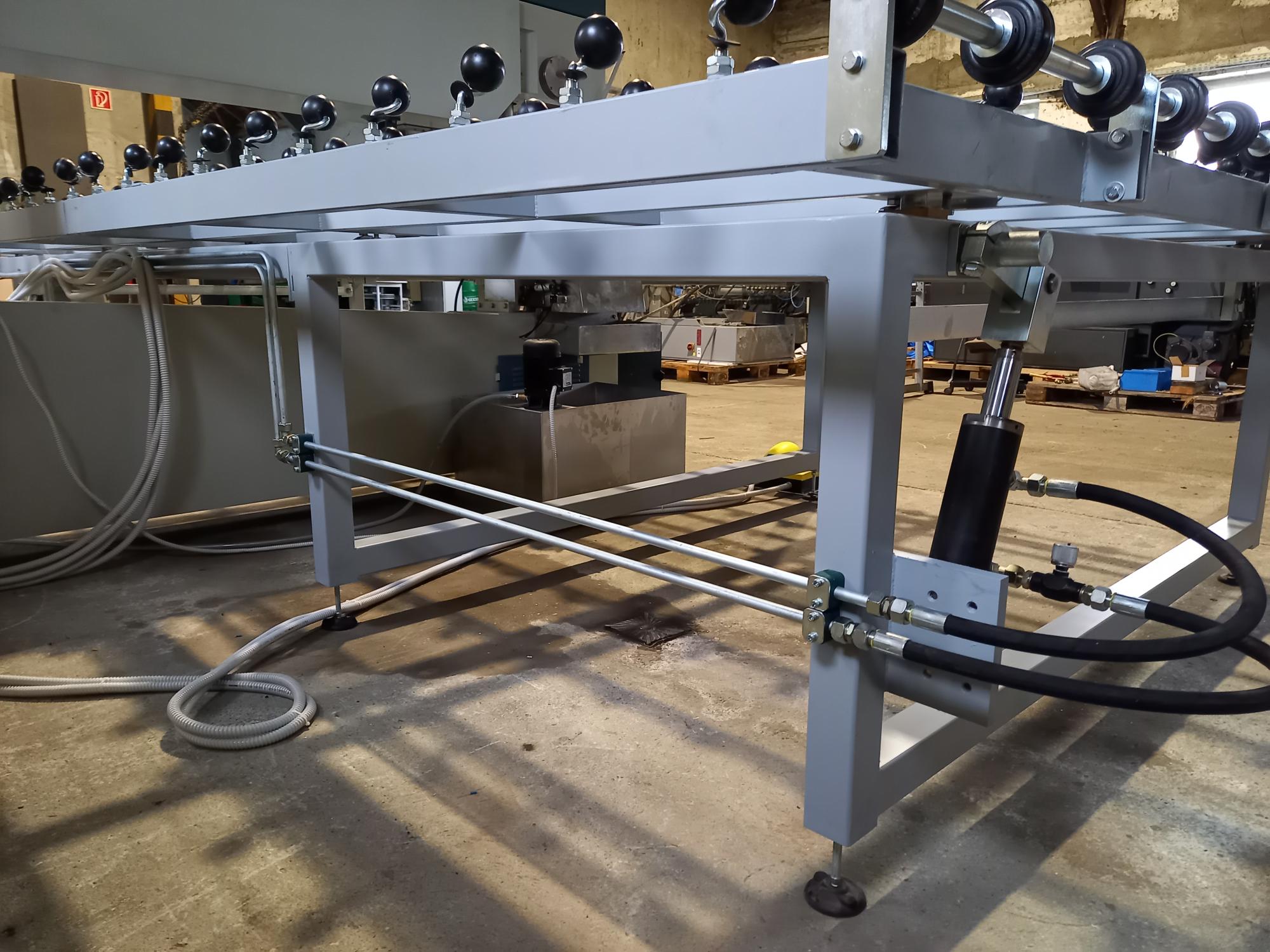

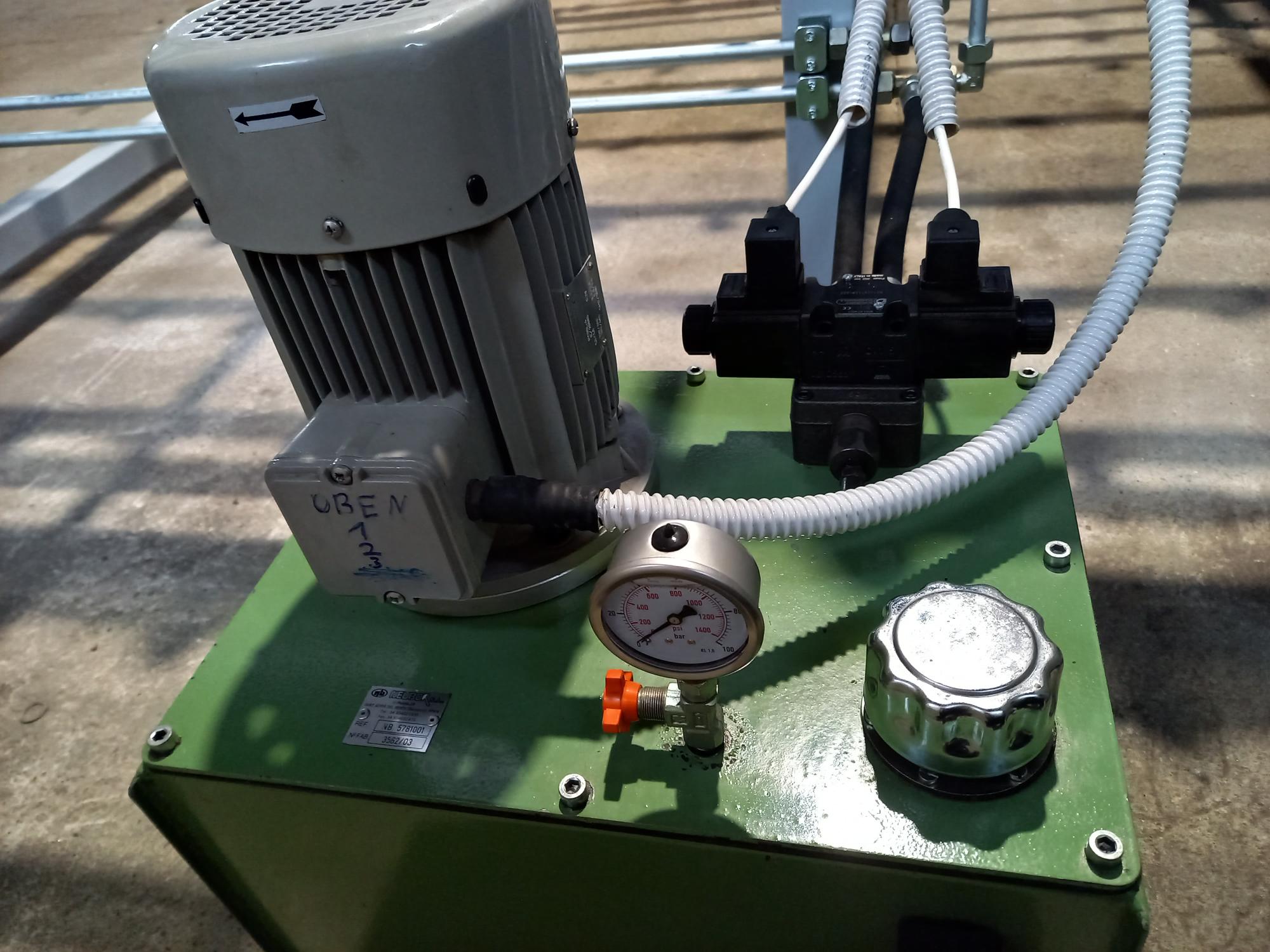

lift/lower of roller table by hydraulic

videos available
