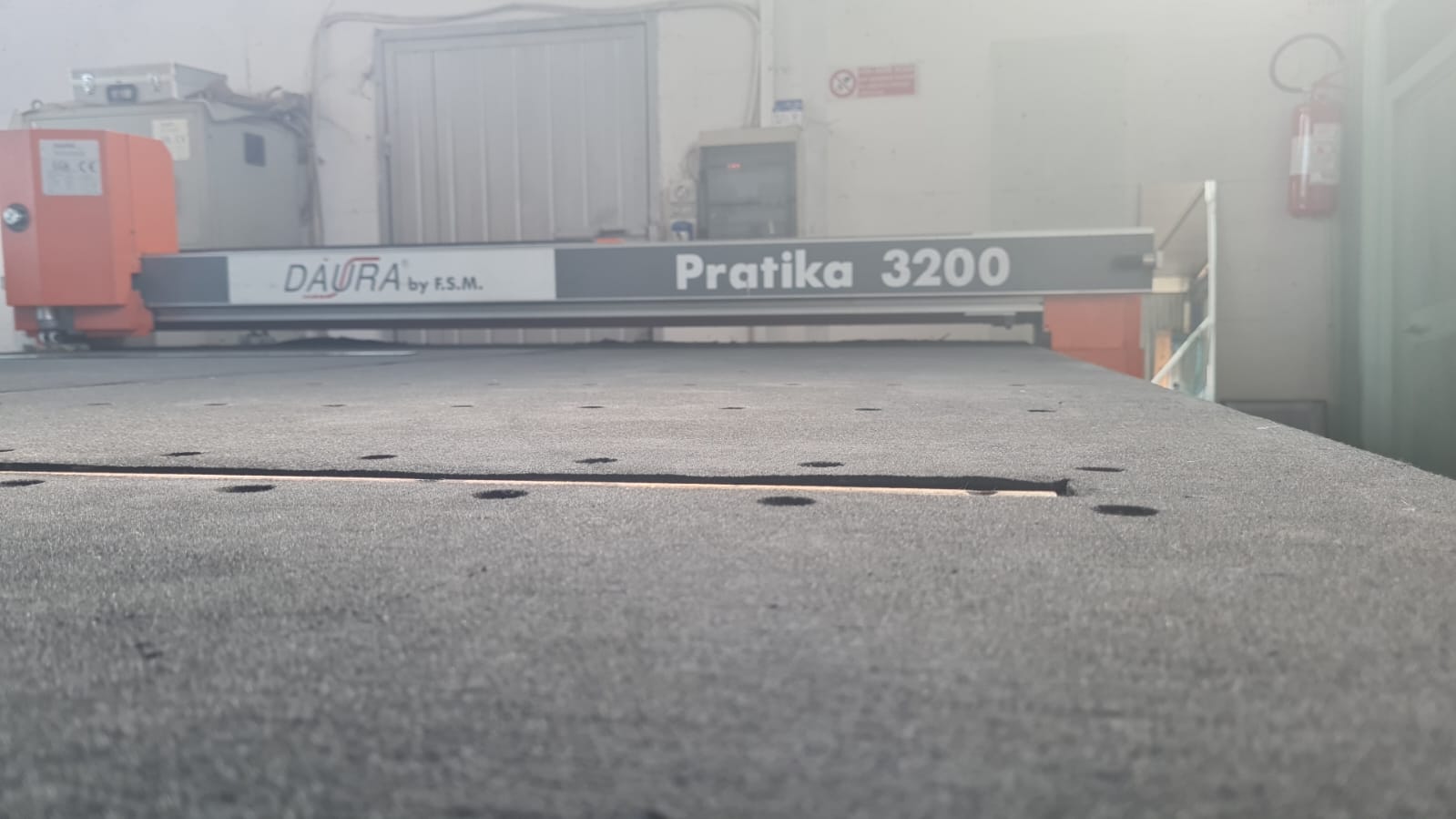

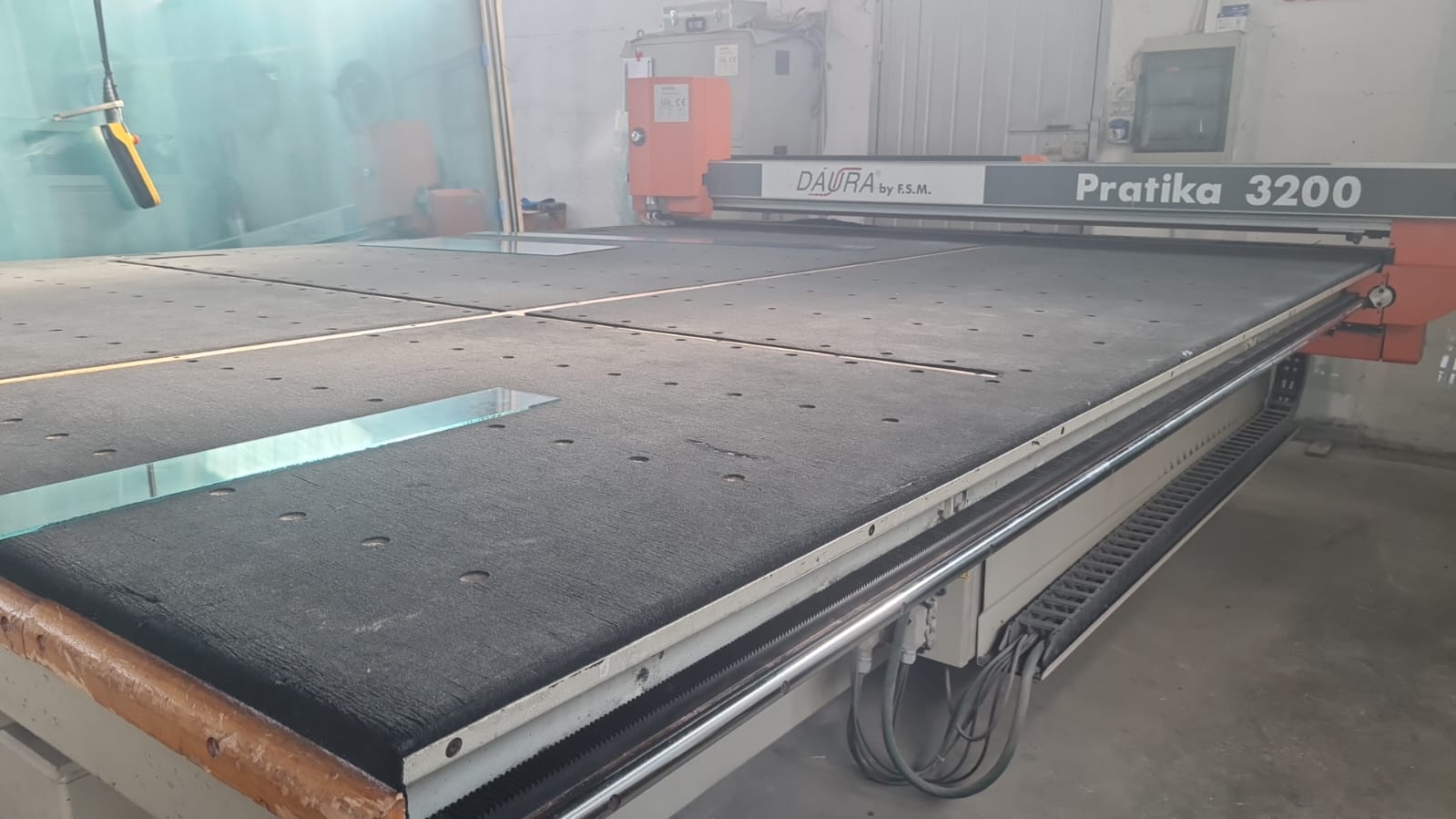

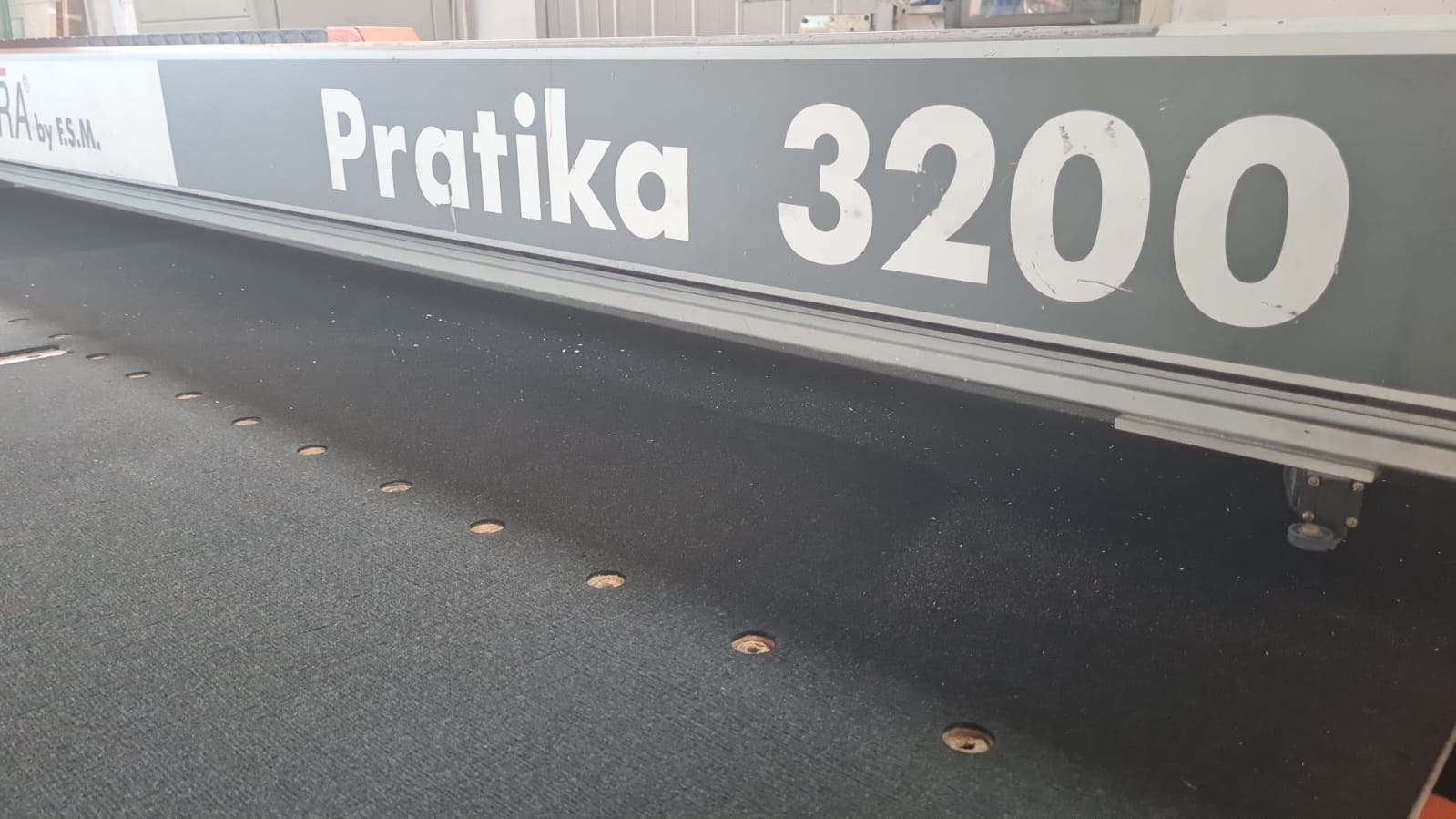

DAURA Pratika 3200 Larp - Year 1998

DAURA Pratika 3200 Larp - Year 1998
Monolithic Cutting Table
Max Dimensions 3700 x 2600 mm
Compressed air connection 1/4 gas - 7 + 8 bar
Workable thicknesses 3-15 mm
Standard voltages 380 - 400V
Positioning accuracy +0.39 mm Frequency 50 Hz
max speed X and Y axes 70 m/min
Installed power 5 kW

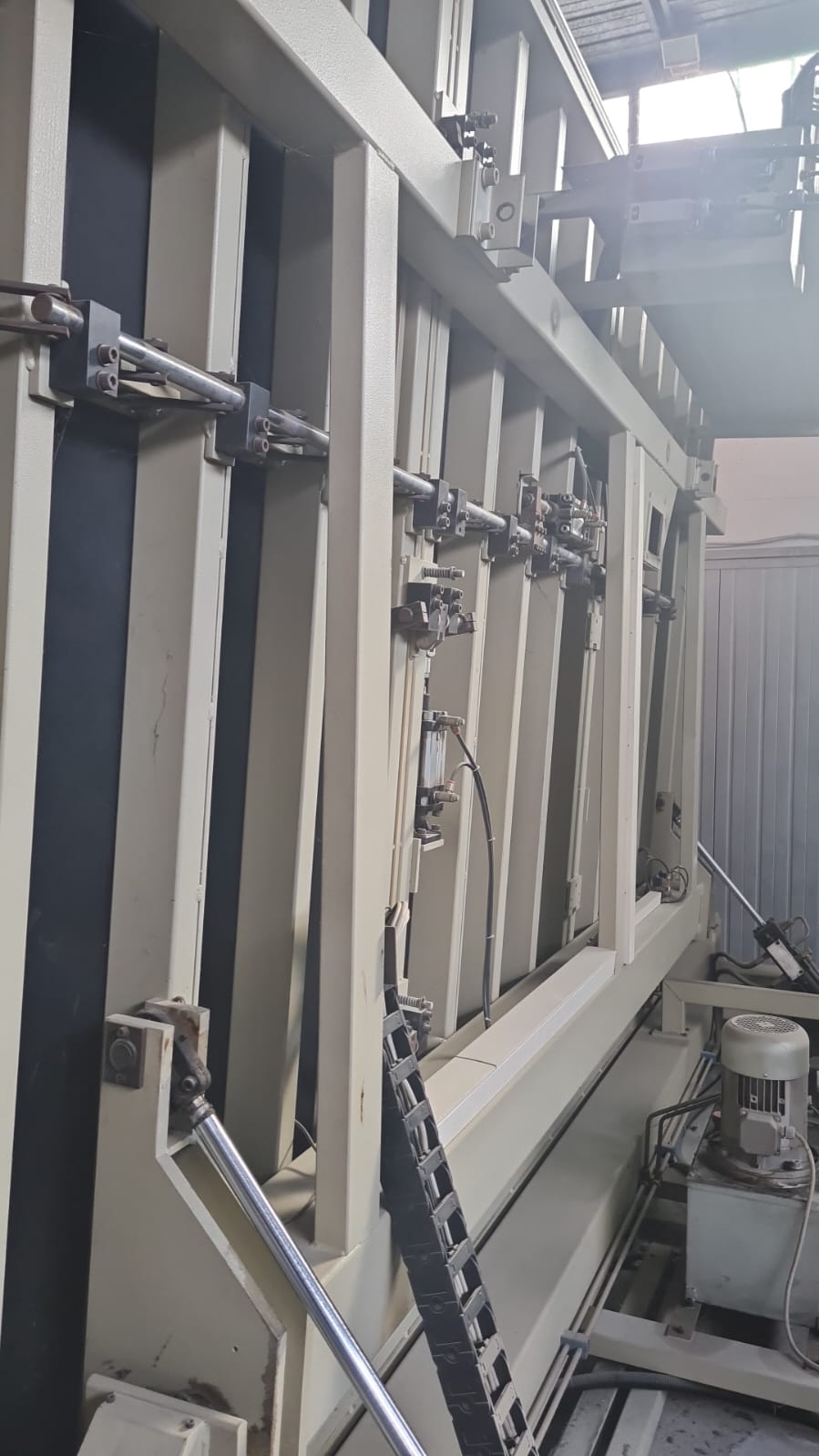

Tilting time 50 sec
Maximum overall dimensions 5150 x 3200 x 1400 mm
Transversal breakout rods n° 1
Worktop height 940 + 20 mm
Longitudinal breakout rods n° 1
Total weight 3000 Kg
Manual aligners n°3 +1
Special voltages 220 - 240 - 415 - 440 - 480 - 550V
Loading supports n° 4
Special frequency 60Hz
Fans n° 1
